Mechanical Seal

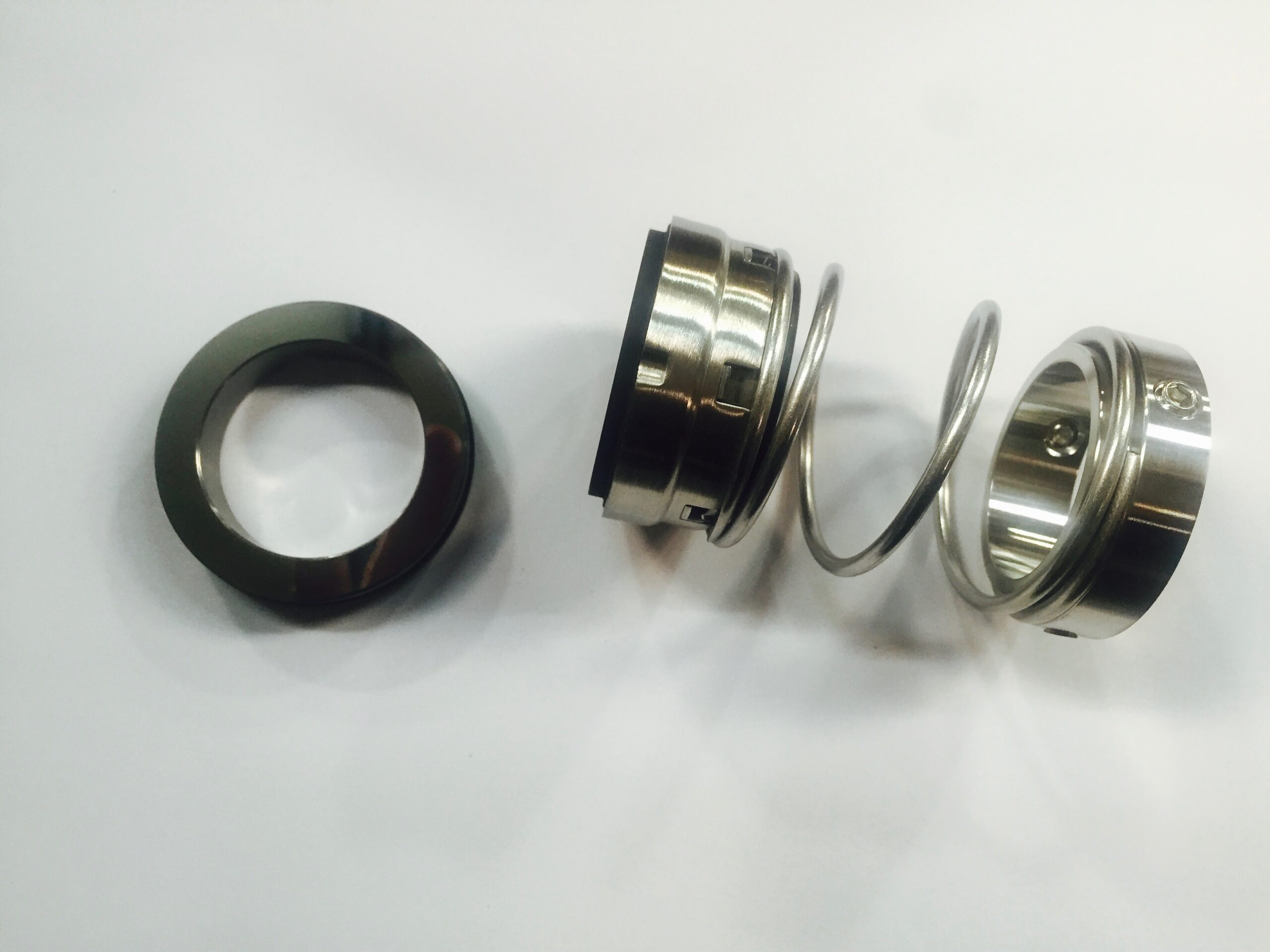

Type 1 Mechanical Seal:  With its proven track record of exceptional performance ( not to mention price savings), the Type 1 elastomer bellows seal is widely recognized as the industry’s workhorse. Suitable for a wide range of service conditions ranging from water and steam to chemicals and corrosive materials, the Type 1 mechanical seal is ideal for use in pumps, mixers, blenders, agitators, air compressors, blowers, fans, and other rotary shaft equipment.

It is frequently used by the pulp and paper, petrochemical, food processing, wastewater treatment, chemical processing, and power generation industries.

TECHNICAL FEATURES

UNBALANCED
SINGLE SPRING
BI-DIRECTIONAL
ELASTOMER BELLOWS
SET SCREW LOCK COLLARS

MATERIALS

ROTARY FACES:

CARBON GRAPHITE, SILICON CARBIDE, TUNGSTEN CARBIDE

STATIONARY SEATS:

CERAMIC, SILICON CARBIDE, TUNGSTEN CARBIDE, STAINLESS STEEL

BELLOWS:

BUNA, VITON, EPDM, AFLAS, NEOPRENE
METAL PARTS: 304 STANDARD OR 316 STAINLESS STEEL OPTION A

Special combinations can be purchased.  Please let us know what you are looking for.

•  Discount for large quantities available
• Master Distributor Discounts

Discounts offered on large quantities offered

We can supply you with new and replacement Mechanical Seals to fit any major brand of pump.  When installed properly Our seals new and replacement seals will perform as well as or better than the original seal giving you OEM performance at significant savings.

We can also provide Inconel and Monel springs upon request.   Though stainless works for mild applications.   When it comes to saltwater, hydrofluoric acid, sulfuric acid, or alkalies, Monel ( nickel-based alloy) be a better choice.  Inconel ( nickel-Chromium) you the right choice for you if your working with high-temperature corrosion.
