Description
A mechanical seal, also known as a mechanical face seal, is a device used to prevent fluid leakage from the interior of a rotating shaft to the environment. Type 1 mechanical seals are the most basic type of mechanical seal and consist of two flat faces that press against each other to form a seal.
These seals are used in a wide range of applications, including pumps, agitators, and compressors. They are designed to operate in a variety of different environments and can handle a wide range of fluids, including water, chemicals, and gases.
One of the main advantages of type 1 mechanical seals is their simple design, which makes them easy to install and maintain. They are also relatively low-cost compared to other types of mechanical seals, making them an attractive option for many applications.
However, there are some disadvantages to type 1 mechanical seals as well. The main disadvantage is that they are not suitable for high-pressure applications. This is because the flat faces can only generate a limited amount of pressure, which makes them less effective at preventing fluid leakage in high-pressure environments.
In addition, type 1 mechanical seals can also be prone to wear and tear over time, which can lead to fluid leakage and reduced performance. To mitigate this, it is important to properly maintain and replace these seals when necessary to ensure optimal performance and prevent leaks.
In conclusion, type 1 mechanical seals are a simple and cost-effective solution for many applications. However, it is important to consider their limitations and to properly maintain them to ensure optimal performance and prevent leaks.

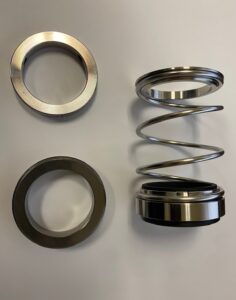

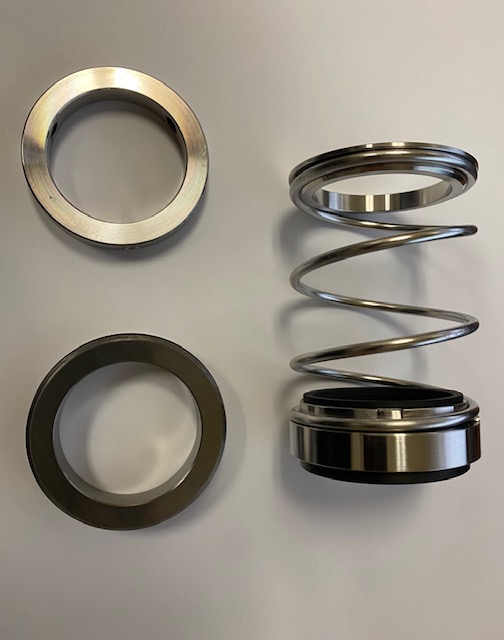

We carry this seal in 1.375″ , 1.750, 2.125″
Features
- Unbalanced
- Single Spring
- Bi-directional
- Elastomer Bellows
- Set screw lock collars Included
Materials
- ROTARY FACES: Carbon Graphite
- STATIONARY SEATS: Tungsten Carbide
- BELLOWS: Viton
- METAL PARTS: 316 SS
Max Pressure:
150 PSI / 10 BAR Max Temperature: 160°C / 320°F Velocity: 20 M/S – 4000 FPM
